Master Pumps selection centre
Two values.
The right starting point.
Enter the required flow rate and head. Source performance curves identify the Master Pumps models that meet this duty point; review suitable candidates in priority order on a single screen.
Circulation pump preliminary selection
Enter the flow rate.
Set the head.
The tool uses only flow rate in m³/h and head in mSS. Results are displayed in priority order among suitable models.
DUTY POINTLIVE PRE-SELECTION
Matching is based on the flow rate delivered at the entered head on source performance curves. Results are preliminary selections only.
COMPARE WITH OTHER BRANDSReview equivalent models at a glance in the table below.
GO TO TABLEDirect matching across 18 rows
One Master Pumps model.
All brand equivalents.
See the Alarko, Grundfos, Wilo, DAB, IMP and Lowara equivalents of each Master Pumps model at a glance. Cells without an equivalent in the source table are shown with “—”.
Master Pumps reference model
Model, length, flow rate, head and power values on the same row.
| Master PumpsLength (mm) · Flow Rate (m³/h) · Head (m) · Power (W) | AlarkoLength · Flow Rate · Head · Power | GrundfosLength · Flow Rate · Head · Power | WiloLength · Flow Rate · Head · Power | DABLength · Flow Rate · Head · Power | IMPLength · Flow Rate · Head · Power | LowaraLength · Flow Rate · Head · Power |
|---|---|---|---|---|---|---|

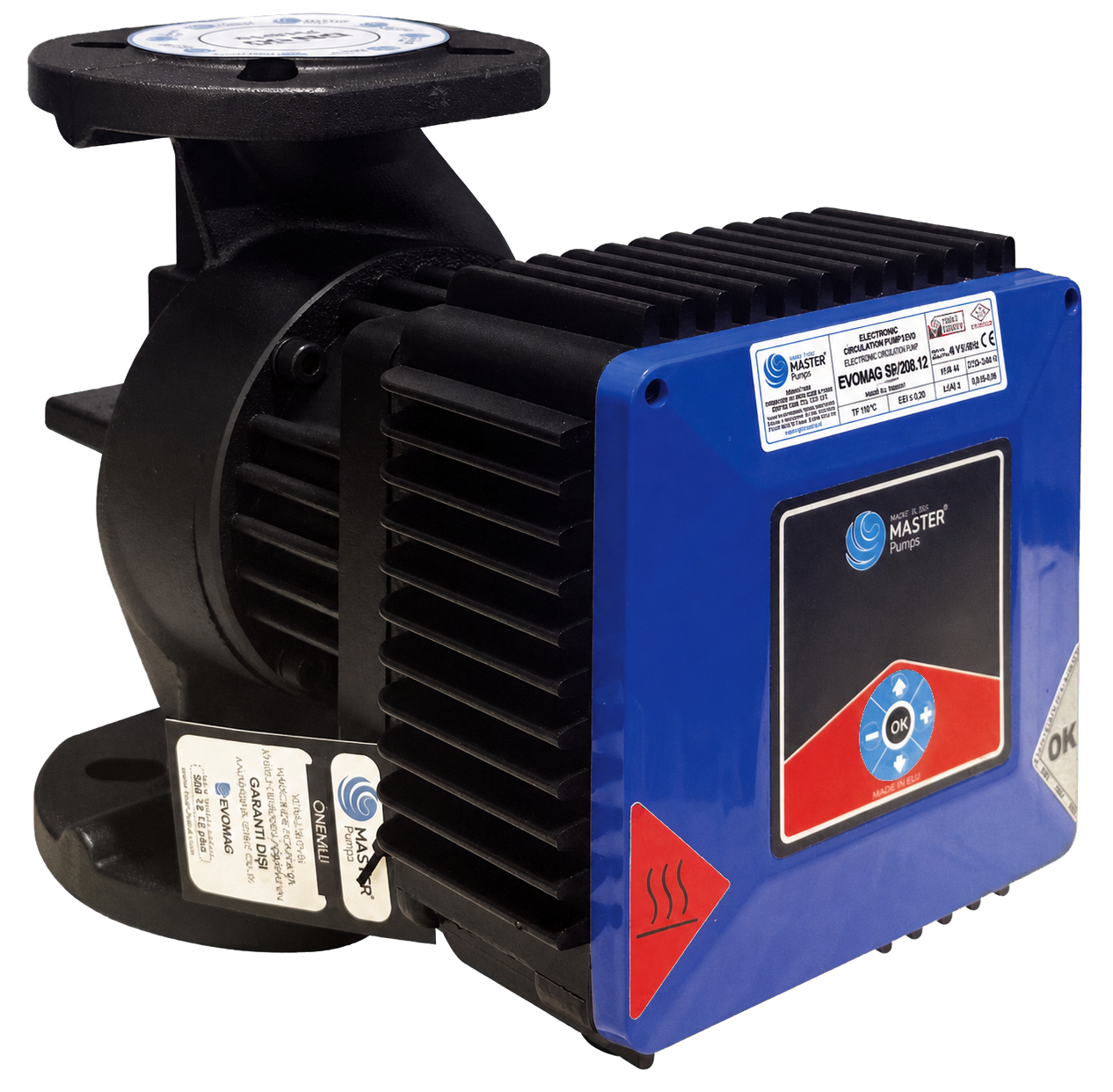

01 EVOMAG 32/180.10
| OPTIMA 3/10-180
| MAGNA1 32-80
| YONOS MAXO 30/0,5-7
| EVOPLUS 110/180 M
| NMT SMART II 32/100
| XL 25-100
|
02EVOMAG 32/180.15
| OPTIMA BYS 3/12-180
| MAGNA1 32-120
| YONOS MAXO 30/0,5-12
| EVOPLUS 110/180 XM
| — | XL 32-100
|
03 EVOMAG 40/220.07
| OPTIMA 4/4
| MAGNA1 40-60 F
| YONOS MAXO 40/0,5-4
| EVOPLUS B 60/220.40 M
| NMT MAX II 40/80 F
| XL 40/80.11 F
|
04EVOMAG 40/250.08
| — | — | — | EVOPLUS B 80/220.40 M
| NMT MAX II 40/80 F
| XL 40/80 F
|
05EVOMAG 40/250.10
| — | MAGNA1 40-100 F
| YONOS MAXO 40/0,5-8
| EVOPLUS B 100/220.40 M
| NMT MAX II 40/100 F
| XL 40/100 F
|
06EVOMAG 40/250.12
| OPTIMA 4/12
| MAGNA1 40-120 F
| YONOS MAXO 40/0,5-12
| EVOPLUS B 120/250.40 M
| NMT MAX II 40/120 F
| XL 40/120 F
|
07EVOMAG 40/250.15
| OPTIMA 4/18
| MAGNA1 40-150 F
| YONOS MAXO 40/0,5-16
| EVOPLUS B 150/250.40 M
| NMT MAX II 40/180 F
| XL 40/150 F
|
08EVOMAG 50/280.07
| OPTIMA BYS 5/8
| — | YONOS MAXO 50/0,5-8
| EVOPLUS B 40/240.50 M
| NMT MAX II 50/40 F
| — |
09EVOMAG 50/280.09
| OPTIMA 5/9
| MAGNA1 50-80 F
| YONOS MAXO 50/0,5-9
| EVOPLUS B 80/240.50 M
| NMT MAX II 50/80 F
| XL 50/80 F
|
10EVOMAG 50/280.12
| OPTIMA 5/12
| MAGNA1 50-120 F
| YONOS MAXO 50/0,5-12
| EVOPLUS B 120/280.50 M
| NMT MAX II 50/120 F
| XL 50/100 F
|
11EVOMAG 50/280.15
| OPTIMA 5/18
| MAGNA1 50-180 F
| YONOS MAXO 50/0,5-16
| EVOPLUS B 150/280.50 M
| NMT MAX II 50/180 F
| XL 50/120 F
|
12EVOMAG 65/340.06
| — | — | — | EVOPLUS B 40/340.65 M
| NMT MAX II 65/40 F
| — |
13EVOMAG 65/340.08
| — | MAGNA1 65-60 F
| — | EVOPLUS B 60/340.65 M
| — | — |
14EVOMAG 65/340.10
| OPTIMA 6/9
| MAGNA1 65-100 F
| YONOS MAXO 65/0,5-9
| EVOPLUS B 100/340.65 M
| NMT MAX II 65/80 F
| XL 65/80 F
|
15EVOMAG 65/340.15
| OPTIMA 6/12
| MAGNA1 65-120 F
| YONOS MAXO 65/0,5-12
| EVOPLUS B 120/340.65 M
| NMT MAX II 65/120 F
| XL 65/120 F
|
16EVOMAG 80/360.08
| — | — | — | EVOPLUS B 40/360.80 M
| NMT MAX II 80/40 F
| — |
17EVOMAG 80/360.10
| — | MAGNA1 80-60 F
| — | EVOPLUS B 80/360.80 M
| — | — |
18EVOMAG 80/360.15
| OPTIMA 8/12
| MAGNA1 80-100 F
| YONOS MAXO 80/0,5-6
| EVOPLUS B 100/360.80 M
| NMT MAX II 80/80 F
| XL 80/120 F
|
IMPORTANT TECHNICAL NOTICE
Final selection must be verified against the pump curve.
The table and selection results provide preliminary selection information generated from the supplied catalogue and list data. Connection dimensions, fluid properties, duty point and current manufacturer data must also be verified by the project engineer.
